Name |
Model |
Specification |
Large Automatic Cable Pay-off Machine+Swing Arm Tensioner New Energy Cable Synchronization Automatic Pay-off Machine |

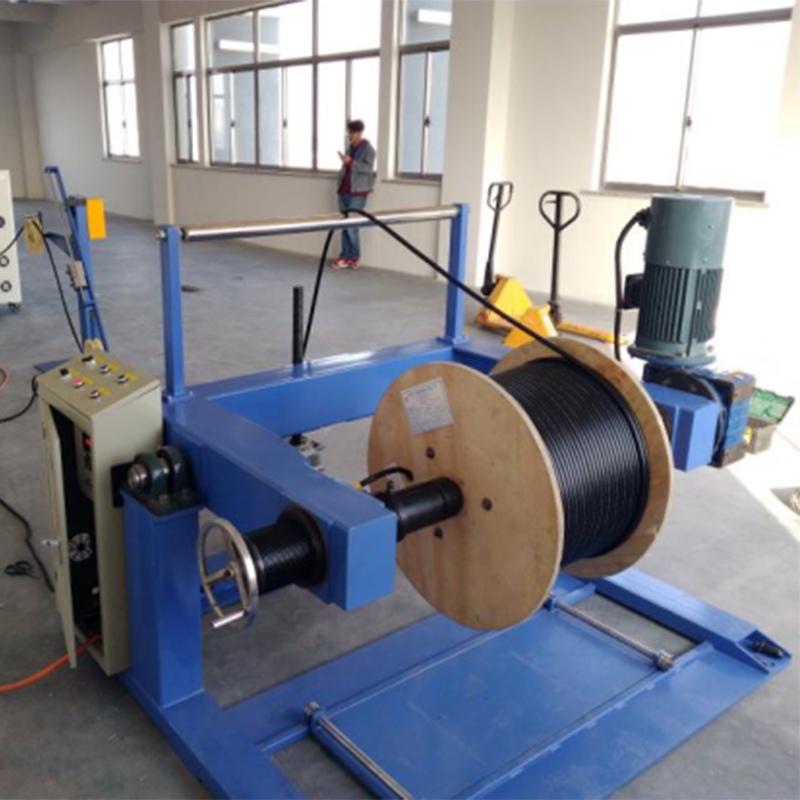

DG-FX800 |
Applicable diameter of 3-20mm, outer diameter 500-800mm, width 300-600mm, maximum cable weight 1T, pay-off speed 250m / min, power 4kw, machine weight 550kg |
DG-FX1000 |
Applicable Diameter of 3-20, outer diameter 600-1000mm, maximum cable weight 1T, pay-off speed 250m/min, power 4kw, machine weight 600kg |
|
DG-FX1250 |
Applicable diameter 3-45mm, outer diameter 550~950mm, mamimum cable weight 1.5T, pay-off speed 100m/min, power 5.5kw, machine weight 700kg |
|
DG-FX1400 |
Appicable diameter 3-45mm, outer diameter 700-1400mm, width 550-950mm, maximum cable weight 2T, pay-off speed 50m/min, power 7.5kw, machine weight 850kg |
|
DG-FX1600 |
Appicable diameter 3-45mm, outer diameter 800-1600mm, width 600-1000mm, maximum cable weight 2T, pay-off speed 50m/min, power 7.5kw, machine weight 1000kg |
