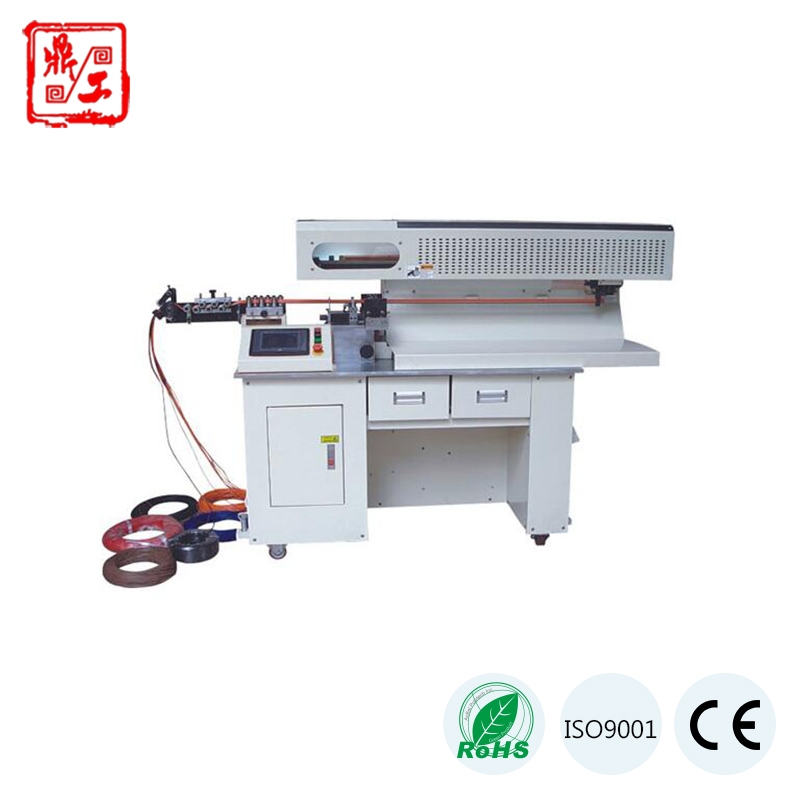

DG-950 Full Automatic High Speed Wire Cutting Machine

DG-950 Full Automatic High Speed Wire Cutting Machine

Advantages:

1.Full automatic high speed cable feeding, accurate cutting, both ends stripping, single end stripping and half stripping;

2.Cable cutting and stripping is controlled by servo motor with more accurate stripping length;

3.Changing mode of whole stripping, half stripping by buttons, easy and fast;

4.Changing the length and depth of stripping by Fine-tune of rotation button, easy to handle;

5.Speed control is with three stages, can be adjustable according to the material and diameter of cables;

6.Stop automatically when low air pressure, stuck of cylinder, no working of counting happen;

7.Easy to handle, short time to adjust mode;

8.It improve the productivity efficiency with cable dividing, winding ,cutting and stripping;

Technical Data:

Product Name

DG-950 Full Automatic High Speed Wire Cutting Machine

Brand Name

Dinggong

Model

DG-950

Voltage

220V/380V

Power

AC Servo Motor

Frequency

50HZ

Operation System

intelligent control of automatic

Display

LCD

Cable SPE

AWG#10-28

Stripping Length

3mm to 30mm(no need gasket)

Half Stripping Length

3mm to 30mm

Tolerance

±(0.002*L)mm

Max Cutting length

42mm-9999mm(refers to PVC part, stripping length not included)

Blade Replacement

10-14 16-18 20-24 AWG cable by angle blade; 24-28AWG cable by flat blade

Noise Level

<70dBA

Net Weight

420KG

Gross Weight

430KG

Package

Export standard wooden case

Package Size

17580*165cm

Machine Size

170*76*160cm

Delivery Time

Within 7 working days after deposit

Warranty

Warranty for one year with lifetime maintain service
