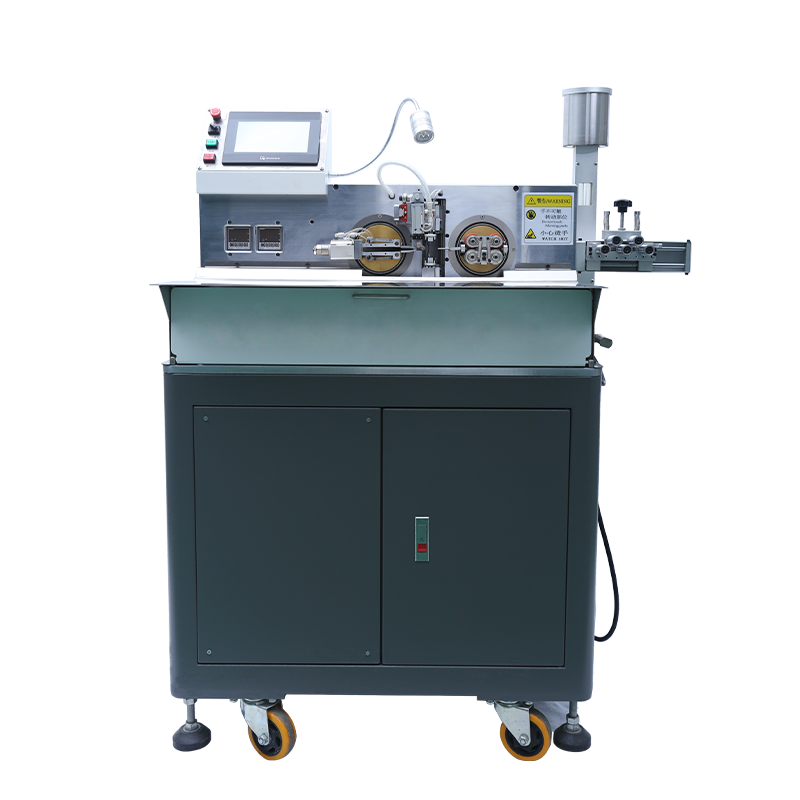

DG-01B High Speed Full Automatic Double Ends Cable Stripping & Twisting & Tinning Machine
Machine Configuration:
1.Panasonic Servo motor: 6 sets
2.Pneumatic components: Solenoid valve ,cylinder, gas pipe with SMC brand
3.Air pressure dedication: SMC brand
4.Screw and guide: Taiwan Silver brand
5.Controller: USA RAM computer control system
6.Operation System: KINCO touch screen
7.Adjustable Design: size of blade, length of stripping, depth of tinning

Product Name

DG-10B High Speed Full Automatic Double Ends Cable Stripping & Twisting & Tinning Machine

Brand Name

DINGGONG

Model

DG-01B

Voltage

AC220V

Frequency

50HZ/60HZ

Working Content

Cutting, Stripping, Twisting, Tinning (single or both ends)

Cable Type

UL/PVC/PE Electronic cable, silicon cable, paint cable,super thin Teflon cable

Electric Cable SPE

UL1007AWG#16-AWG#32

OD Range

0.3mm-3.0mm

Cable Feeding Mode

10/8/5 cables( changeable as you like)

Length of Cutting

8mm-6000mm

Length of Stripping

0.1mm-9.9mm

Length of Twisting

3.0mm-8.0mm

Length of Tinning

0.1mm-9.9mm

Air Pressure

0.5mpa-0.7mpa

Output

20000PCS/H (depends on different cables)

Crimping Pressure

1.5T

Number of Flat Cable

2-20 pin( ODM available)

Net Weight

330KG

Gross Weight

340KG

Package

Export Quality Wooden Case

Package Size

115*75*125cm

Machine Size

112*73*120cm

Delivery Time

Within 7 working days after deposit

Warranty

Warranty for one year with lifetime maintain service
